ZT3241E

Low Power +3V to +5.5V, 3D/5R 250Kbps RS232 Transceivers (Features 28-pin)

Add Favorites

Overview

The ZT3243E Series devices are 3V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements. They consist of three line drivers, five line receivers and the proprietary switch-capacitor regulated voltage converters. These devices operate from a single 3V to 5.5V power supply at the guaranteed data rate of 250K bits/sec with enhanced electrostatic discharge (ESD) protection in all RS232 I/O pins exceeding ±15kV IEC61000-4-2 Air Gap Discharge and ±8kV IEC61000-4-2 Contact Discharge.


The ZT3243E Series feature the AUTOGREEN (patent pending) proprietary function which automatically powers down the on-chip regulated voltage converters and driver circuits when an RS-232 cable is disconnected from the host interface or when a connected peripheral device is turned off.

Features

● Meets or Exceeds the EIA/TIA-232F and CCITT V.28/V.24 Specifications for Vcc at +3.3V ±10% and +5V ±10% Operations

● Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source
● Low quiescent current – 0.5mA typ., 1mA max
● Low shutdown current (where applicable) - 1μA typical, 10μA max
● Guaranteed data rate 250Kbps
● Proprietary Switch-Capacitor Regulated Voltage Converters (patent pending)
● Proprietary AUTOGREEN Power Saving (patent pending)
● Latch-up Free
● ESD Protection for RS-232 I/O’s
-- ±15kV Human Body Model (HBM)
-- ±15kV IEC61000-4-2 Air Gap Discharge
-- ±8kV IEC61000-4-2 Contact Discharge
● Drop-in Replacements for MAX3243E, ICL3243E, ISL4243E, ST3243E and SP3243E
● High Data Rate at 1000Kbps Available on ZT3243F Series

Target Applications

Battery-Powered And Hand-Held Applications

Notebooks, Subnotebooks, and Palmtops
Industrial and Embedded PCs
Data Cables for Cell Phones and PDAs
Terminal Adapters and POS terminals
Peripherals interface
Routers and HUBs

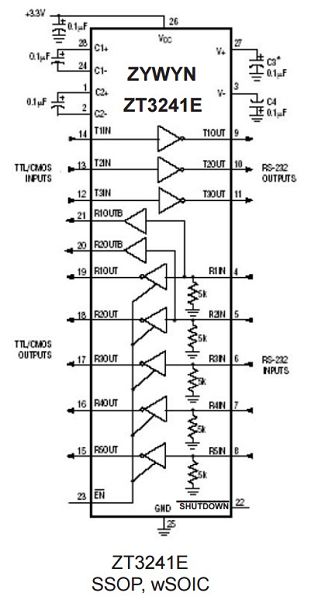

Diagram

test

Download

Technical Documentation

Product Brief, Product Introduction and Datasheet

ZT3241E Product Brief

Release Date
2015-04-30

File Size
220.4 KB

ZT3241E Datasheet

Version
2.30

Release Date
2019-08-30

File Size
1.2 MB
