Low Power +3V to +5.5V, 3D/5R 1000Kbps RS232 Transceivers (Features 28/32-pin)

Add Favorites

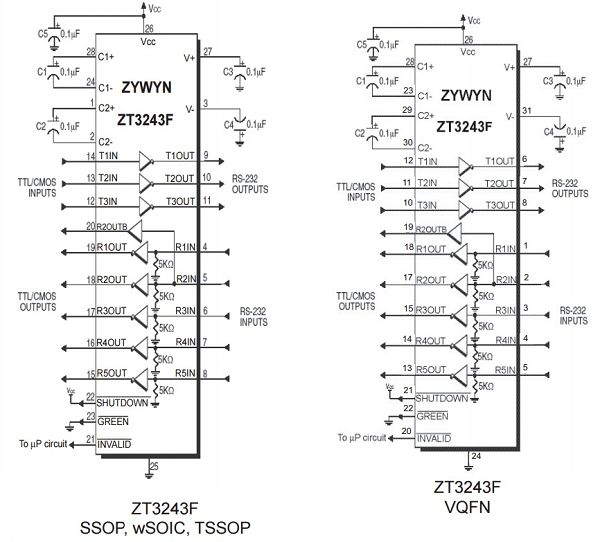

The ZT3243F Series devices are 3V powered EIA/TIA-232 and V.28/V.24 communication interfaces with low power requirements. They consist of three line drivers, five line receivers and the proprietary switch-capacitor regulated voltage converters. These devices operate from a single 3V to 5.5V power supply at the guaranteed data rate of 1000K bits/sec with enhanced electrostatic discharge (ESD) protection in all RS232 I/O pins exceeding ±15kV IEC61000-4-2 Air Gap Discharge and ±8kV IEC61000-4-2 Contact Discharge.

The ZT3243F Series feature the AUTOGREEN (patent pending) proprietary function which automatically powers down the on-chip regulated voltage converters and driver circuits when an RS-232 cable is disconnected from the host interface or when a connected peripheral device is turned off.


● Meets or Exceeds the EIA/TIA-232F and CCITT V.28/V.24 Specifications for Vcc at +3.3V ±10% and +5V ±10% Operations
● Interoperable with EIA/TIA-232 and adheres to EIA/TIA-562 down to a +2.7V power source
● Low quiescent current – 0.5mA typ., 1mA max
● Low shutdown current (where applicable) - 1μA typical, 10μA max
● Guaranteed data rate 1000Kbps
● Proprietary Switch-Capacitor Regulated Voltage Converters (patent pending)
● Proprietary AUTOGREEN Power Saving (patent pending)
● Latch-up Free
● ESD Protection for RS-232 I/O’s
-- ±15kV Human Body Model (HBM)
-- ±15kV IEC61000-4-2 Air Gap Discharge
-- ±8kV IEC61000-4-2 Contact Discharge
● Pin and Function Compatible Replacements for MAX3245E, ICL3245, ISL4245E, and SP3243U
● Standard Data Rate at 250Kbps Available on ZT3243E Series

Target Applications

Battery-Powered And Hand-Held Applications
Notebooks, Subnotebooks, and Palmtops
Industrial and Embedded PCs
Data Cables for Cell Phones and PDAs
Terminal Adapters and POS terminals
Peripherals interface
Routers and HUBs
