The ZT3070E series devices are 3V differential data line transceivers for RS485/RS422 communication that consist of one driver and one receiver with high level of ESD protection. They are designed for balanced transmission lines interface that meet ANSI standard TIA/EIA-485-A and ISO 8482:1987(E) specifications.
The ZT3070E series devices span out with half or full duplex, data rate guaranteed at 250Kbps, 500Kbps or 16Mbps, and allow 1/8 unit load that fan out 256 devices sharing a common bus. The I/Os are enhanced-electrostatic discharge (ESD) protected, exceeding ±15Kv Human Body Model (HBM).
ZT3078E

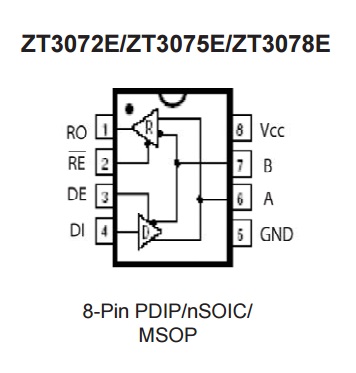

Low Power 3V 16Mbps RS485 Transceivers (Features 8-pin, Half Duplex)
Add Favorites
Overview
Features
● Meets or exceeds the requirements of ANSI Standard TIA/EIA-485-A and ISO 8482:1987(E) specifications for Vcc at +3.3V ±10%
● Low quiescent current – 0.5mA typ., 1.5mA max
● Low shutdown current (where applicable) - 0.05μA typical, 10μA max
● Guaranteed standard data rate 250Kbps, 500Kbps, or 16Mbps
● True Fail-Safe (Open and Short) Receiver
● -7V to +12V common-mode input voltage range
● Half-Duplex or Full-Duplex configuration
● Allows up to 1/8 unit load (256 devices) on the same common bus
● Controlled driver output slew rate and receiver input filtering
● Active-high driver enable and active-low receiver enable
● ESD Protection on bus terminals
-- ±15kV Human Body Model (HBM)
● Drop-in Replacements for MAX3070E, MAX3071E, MAX3072E, MAX3073E, MAX3075E, MAX3076E, MAX3077E, MAX3078E
Target Applications
RS-422/RS-485 communications
Utility meters
Industrial process control
Building automation
Level translators
Transceivers for EMI-sensitive applications
Routers and HUBs
Industrial-controlled Local Area Networks
Industrial PCs, embedded PCs and peripherals
Industrial, security CATV and camera applications
Diagram
