AXM57104 TSN Development Platform

The AXM57104 TSN Development Platform provides an easy way to enter the new generation industrial Ethernet, Time-Sensitive Networking (TSN) world on Real-Time Linux (RT-Linux) industrial computers.

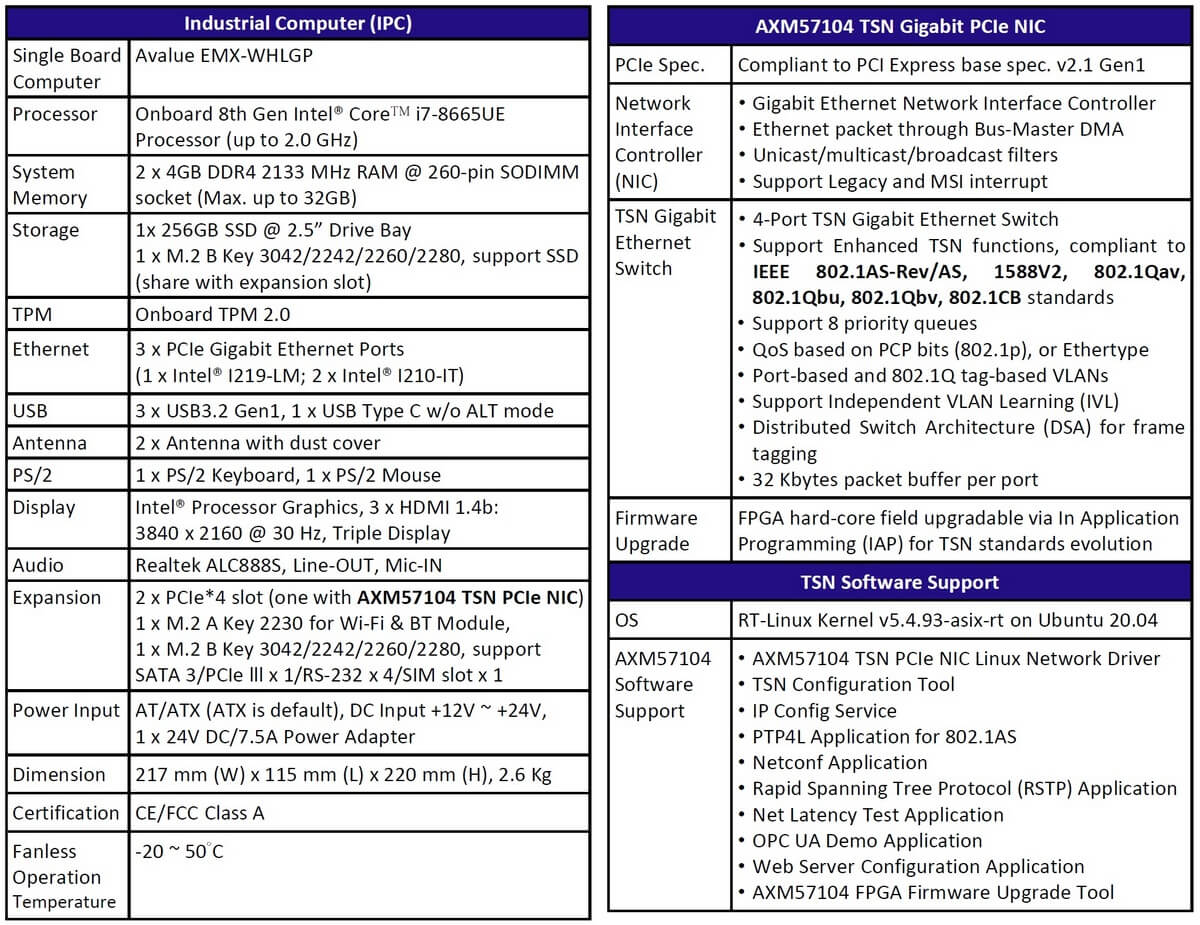

AXM57104 TSN Development Platform is a fanless industrial computer (IPC) with one AXM57104 Quad Port TSN Gigabit Ethernet PCIe NIC card installed, which is equipped with high-performance 8th Gen Intel® Core™ i7 processor and pre-installed AXM57104 TSN software applications on Linux operating system with real-time extensions.

AXM57104 TSN Gigabit PCIe NIC supports enhanced TSN functions, compliant to IEEE 802.1AS-Rev/AS, 1588V2, 802.1Qav, 802.1Qbu, 802.1Qbv and 802.1CB. AXM57104 TSN software applications includes AXM57104 Linux network driver, TSN configuration, PTP4L, RSTP, Netconf, Web Server configuration, Net Latency Test, OPC UA demo, etc. applications and FPGA firmware upgrade tool. AXM57104 also supports FPGA hard-core field upgradable via In-Application Programming (IAP) for TSN standards evolution.
