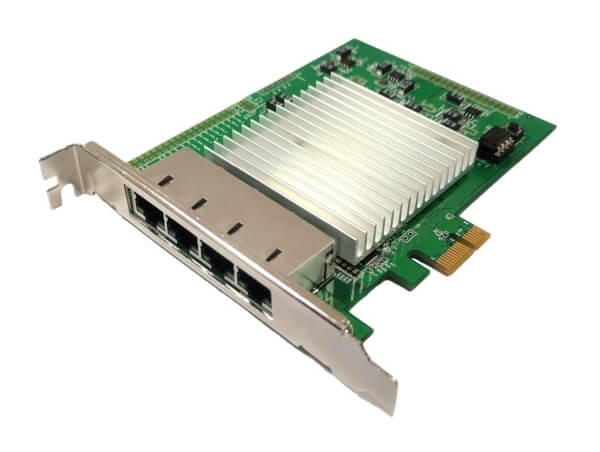

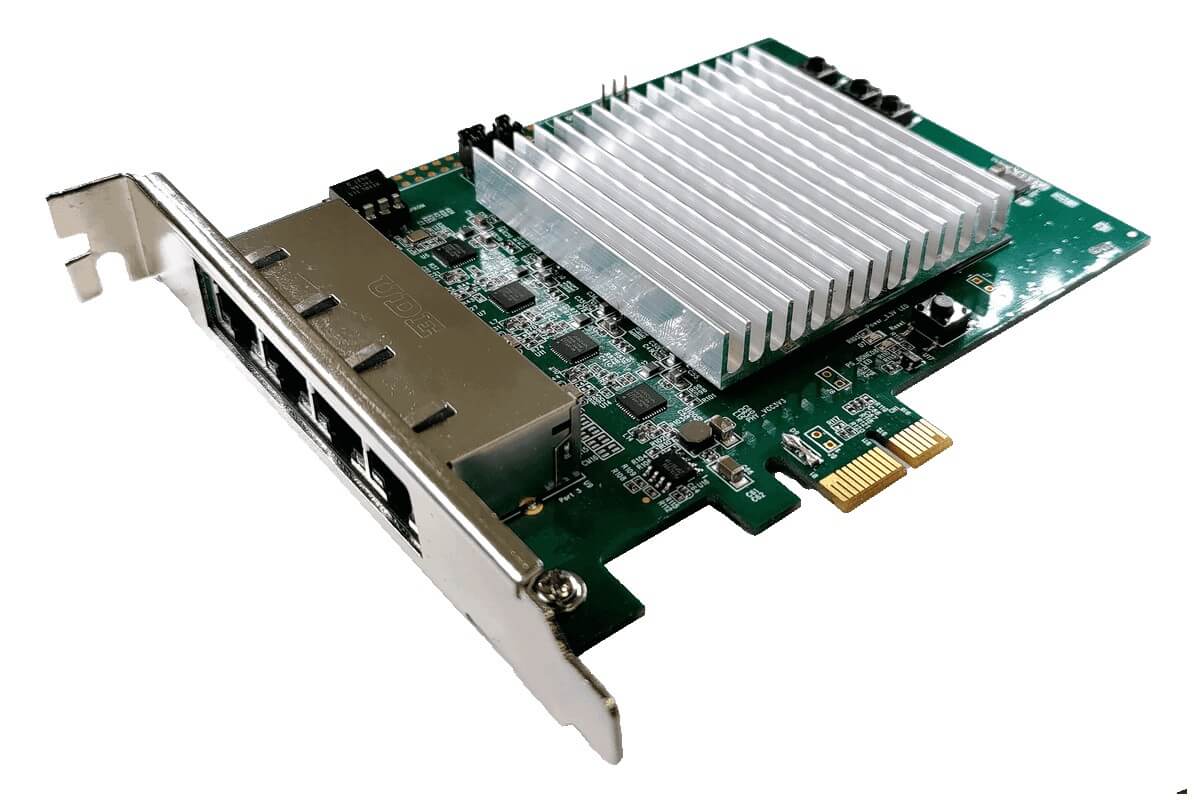

AXM57104A

Quad Port TSN Gigabit Ethernet PCIe NIC Card

Add Favorites

Overview

test

The AXM57104A is a 4-port TSN Gigabit Ethernet PCI Express network interface card, compliant to PCI Express base spec. v2.1 Gen1, which supports enhanced TSN functions, compliant to IEEE 802.1AS-Rev/AS-2020, 1588V2, 802.1Qav, 802.3br & 802.1Qbu, 802.1Qbv, 802.1Qci and 802.1CB. AXM57104A also supports 32 synchronous I/O pins, one Pulse Per Second (PPS) output, FPGA hard-core field upgradable via In Application Programming (IAP) for TSN standards evolution.


The AXM57104A is a cost-efficient PCIe to TSN solution for Industrial Internet of Things (IIoT) applications to enable TSN functions on industrial automation platforms, Fieldbus over TSN gateways and converge the non-real-time IT (Information Technology) network and real-time OT (Operation Technology) networks which work on different industrial Ethernet protocols such as EtherCAT/PROFINET/EtherNet IP/etc.

Features:

● Compliant to PCI Express base spec. v2.1 Gen1

● PCIe Network Interface Controller (NIC)
-- Gigabit Ethernet Network Interface Controller
-- Ethernet packet through Bus-Master DMA
-- Unicast/multicast/broadcast filters
-- Support Legacy and MSI interrupt
● TSN Gigabit Ethernet Switch
-- IEEE 802.1AS-Rev/AS-2020 and IEEE 1588V2: Timing and Synchronization
-- IEEE 802.1Qav: Forwarding and Queuing of Time Sensitive Streams (FQTSS) : Specifies Credit-Based Shaper (CBS)
-- IEEE 802.3br & IEEE 802.1Qbu: Frame Preemption
-- IEEE 802.1Qbv: Time-Aware Shaper (TAS)
-- IEEE 802.1Qci: Per-Stream Filtering and Policing (PSFP)
-- IEEE 802.1CB: Frame Replication and Elimination for Reliability (FRER)
-- Support 8 priority queues
-- QoS according to the DSCP, PCP bits (802.1p), or Ethertype
-- Port-based and 802.1Q tag-based VLANs
-- Support Independent VLAN Learning (IVL)
-- DSA (Distributed Switch Architecture) for frame tagging
-- Shared Dynamic and Static MAC Table (4096 entries), Automatic MAC addresses learning and ageing
-- Broadcast storm protection and multicast frames filtering
-- Per-port Frame rate limiting and Frame/Error counters
-- 32 Kbytes packet buffer per port
● FPGA hard-core field upgradable via In Application Programming (IAP) for TSN standards evolution
● Support Board Support Package (BSP)
● 32 Synchronous I/O pins and one I2C master
● One Pulse Per Second (PPS) output
● Support PCI Express x1 slot, Standard profile bracket
● Operating Temperature Range: -40 to +80℃

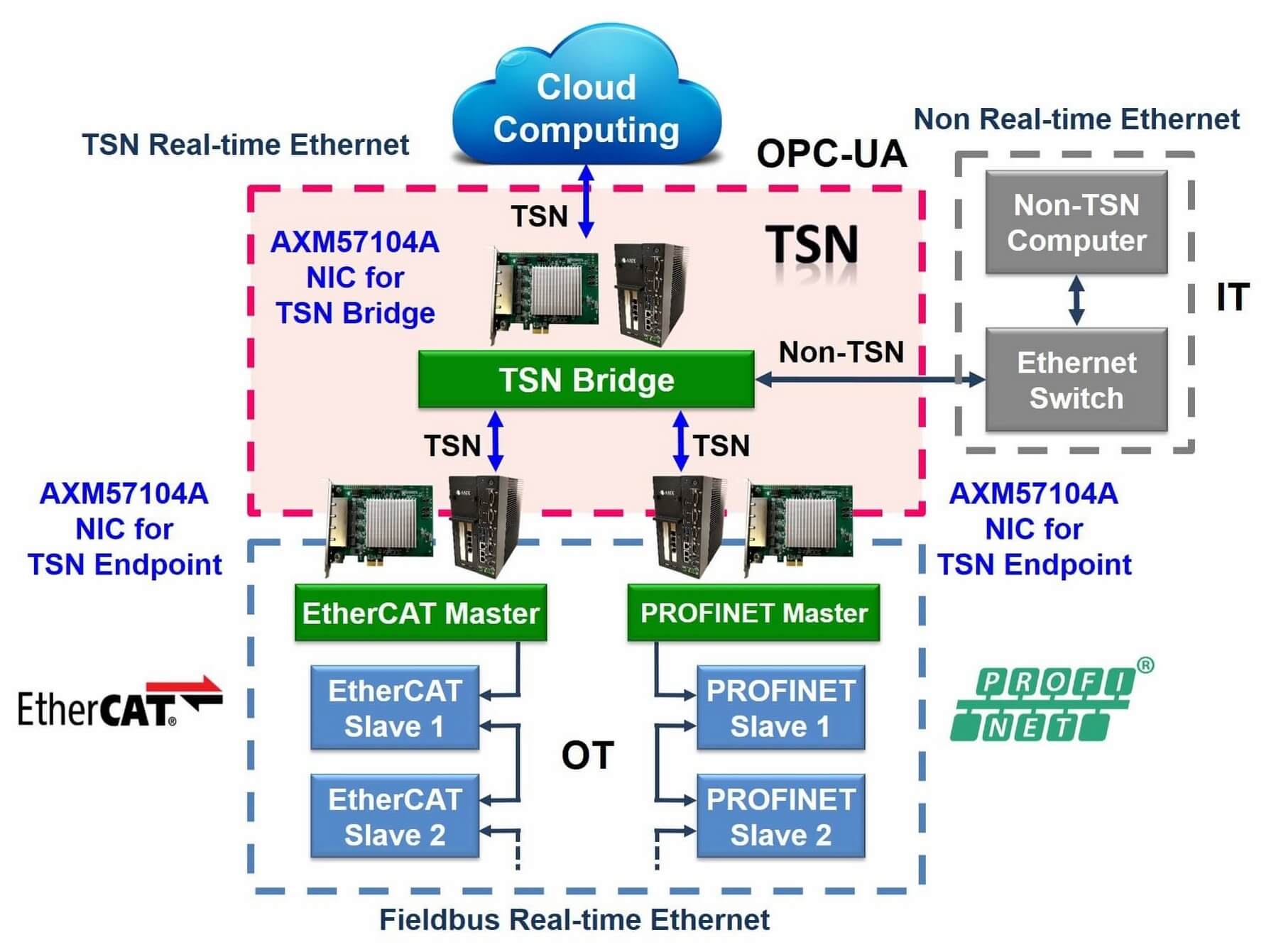

Target Applications:

● Enable TSN on Industrial Automation Platforms

● Fieldbus over TSN Gateway
● Converge IT & OT Networks

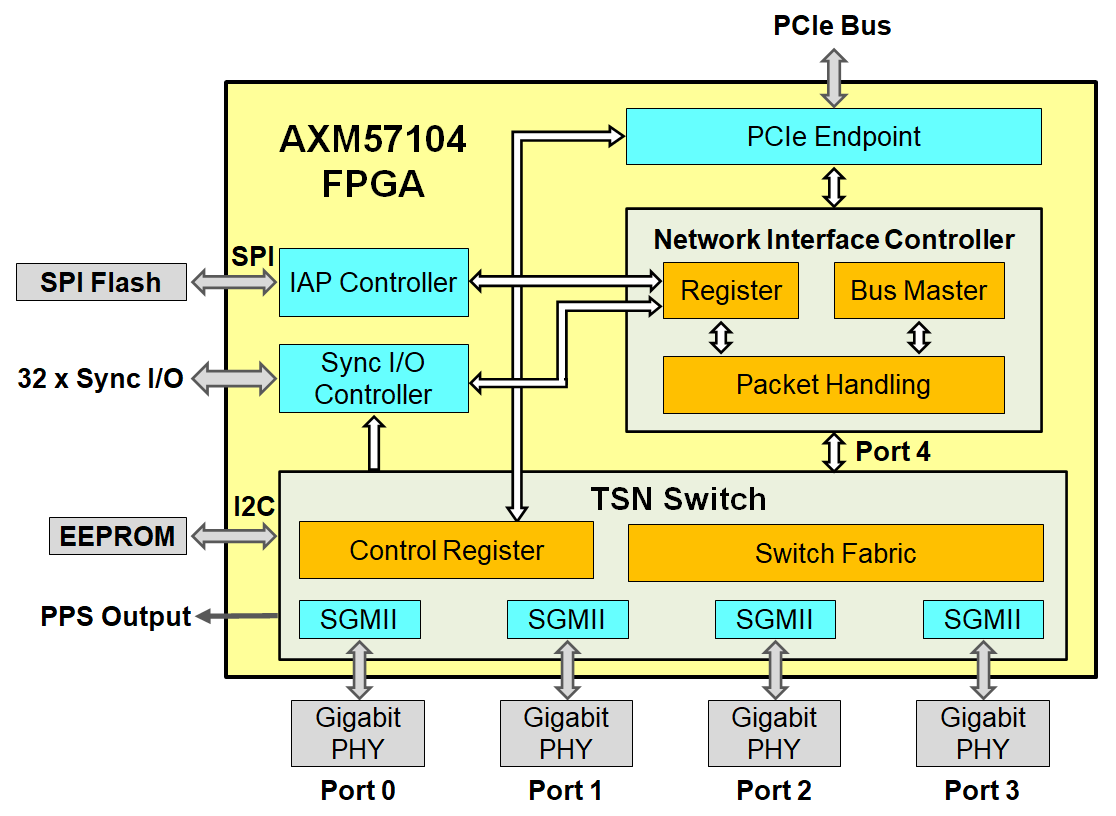

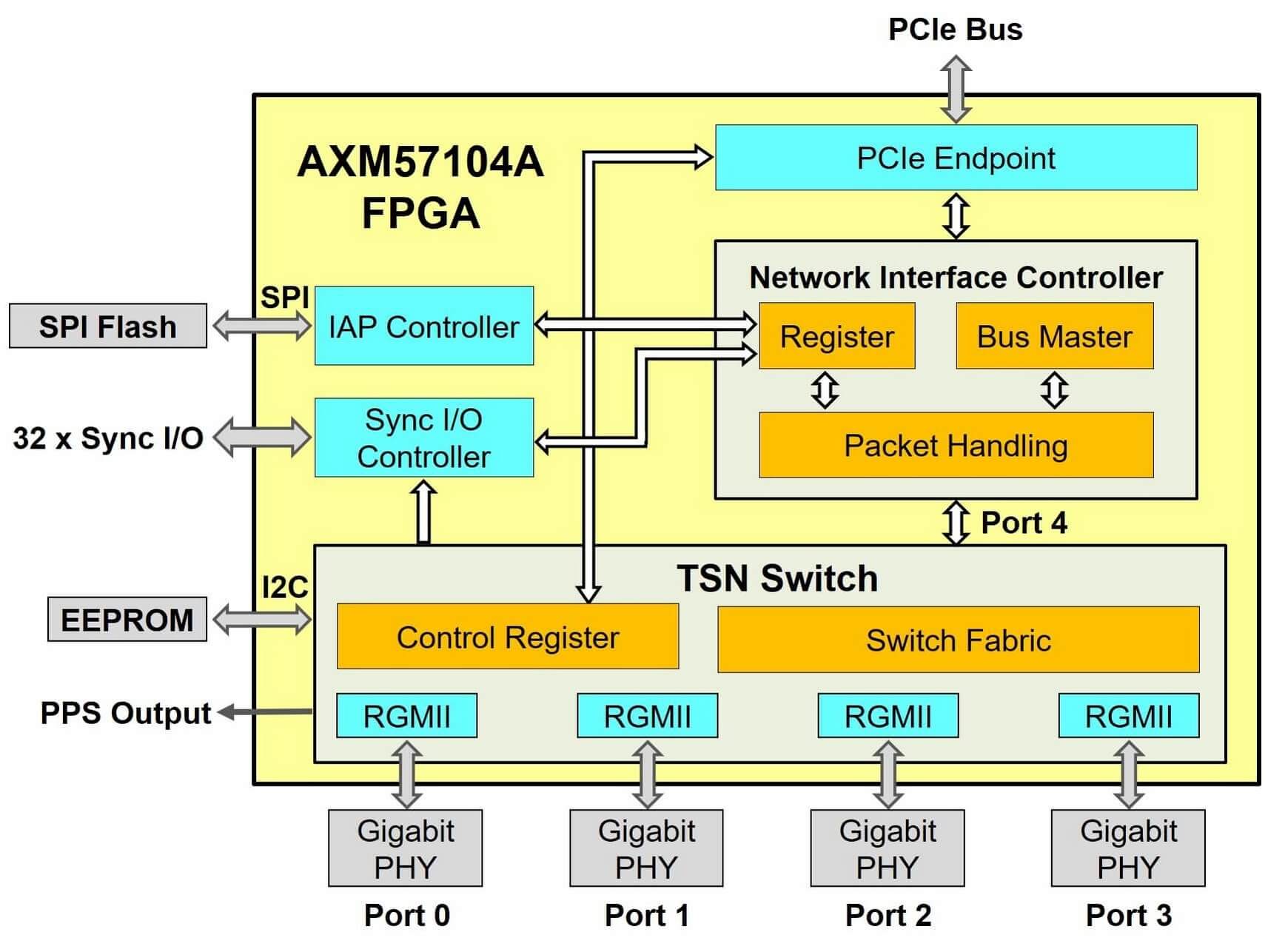

Diagram

test

Download

Technical Documentation

Product Brief, Product Introduction and Datasheet

AXM57104 Product Brief

Release Date
2023-06-13

File Size
414.9 KB

AXM57104 TSN Platform Brief

Release Date
2023-06-13

File Size
350.9 KB

Reference Manuals and User Guides

AXM57104 BSP User Guide

Version
1.40

Release Date
2021-12-16

File Size
141.4 KB

AXM57104 Platform BSP User Guide

Version
2.02

Release Date
2023-08-14

File Size
185.6 KB

Software & Tools

Drivers

Linux Kernel driver

Version
1.0.0

Release Date
2020-08-10

File Size
41.1 KB
