ASIX IO-Link Device Software Stack Solution

The ASIX IO-Link Device Software Stack is developed on AXM-IOLS IO-Link device evaluation board, which is equipped with STMicroelectronics STM32F469AI microcontroller and L6362A IO-Link device transceiver. The software stack is developed using the STM32CubeIDE development tool, based on STMicroelectronics STEVAL-BFA001V2 software development kit, and seamlessly integrates ASIX's proprietary IO-Link device software stack library. It is suitable for a variety of smart IO-Link device applications, such as IO-Link sensors, IO-Link actuators, IO-Link hubs, and IO-Link valve islands.

The ASIX IO-Link device software stack package includes ASIX IO-Link device software stack trial library, a demonstration application, AXM-IOLS evaluation board reference circuit and PCB layout file, etc. The trial version of ASIX IO-Link device software stack library provides the complete functionality, excluding only the firmware upgrade feature. Designers can evaluate the comprehensive capabilities of ASIX IO-Link device software stack using the AXM-IOLS evaluation board, expediting product development timelines.

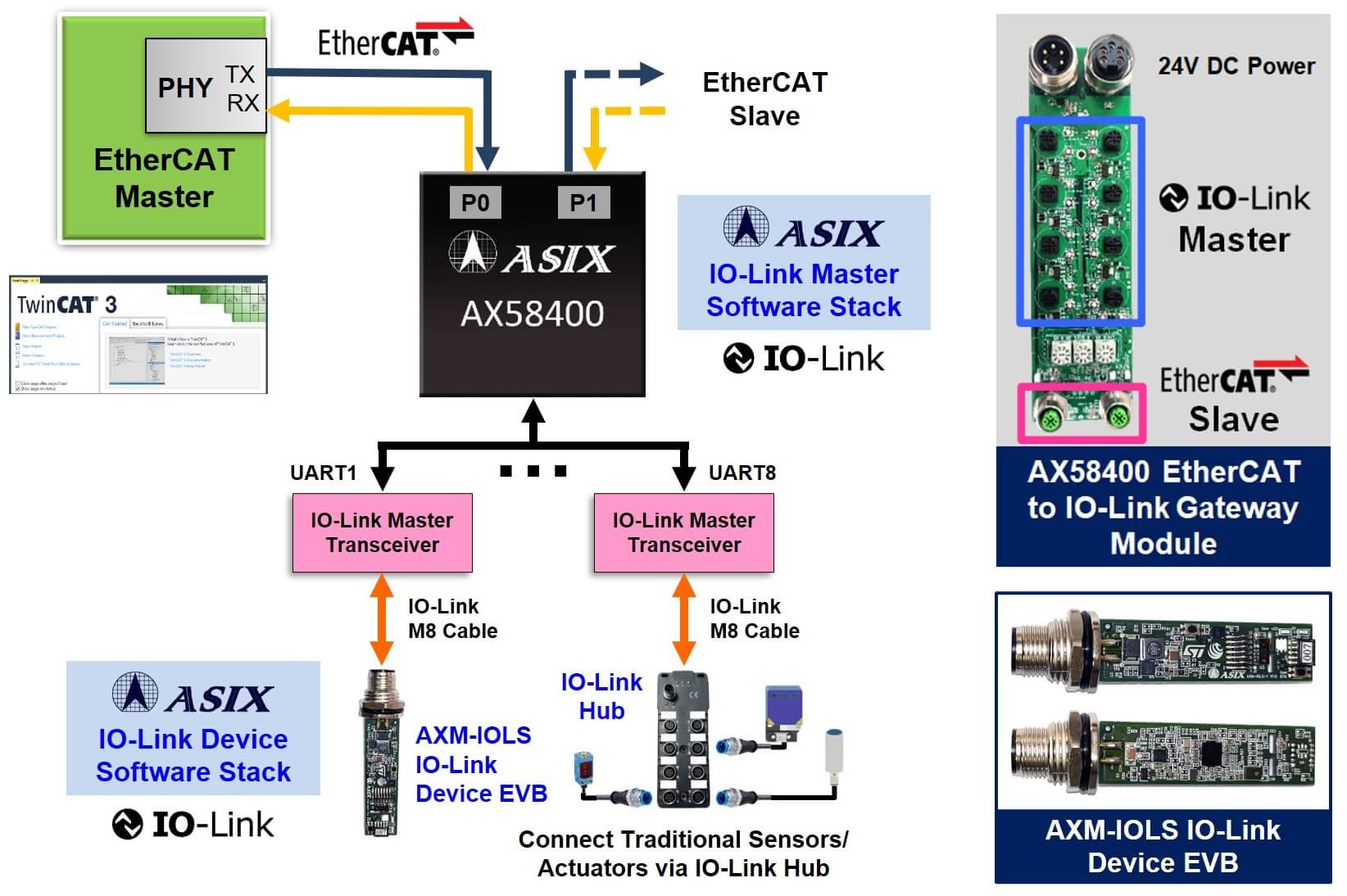

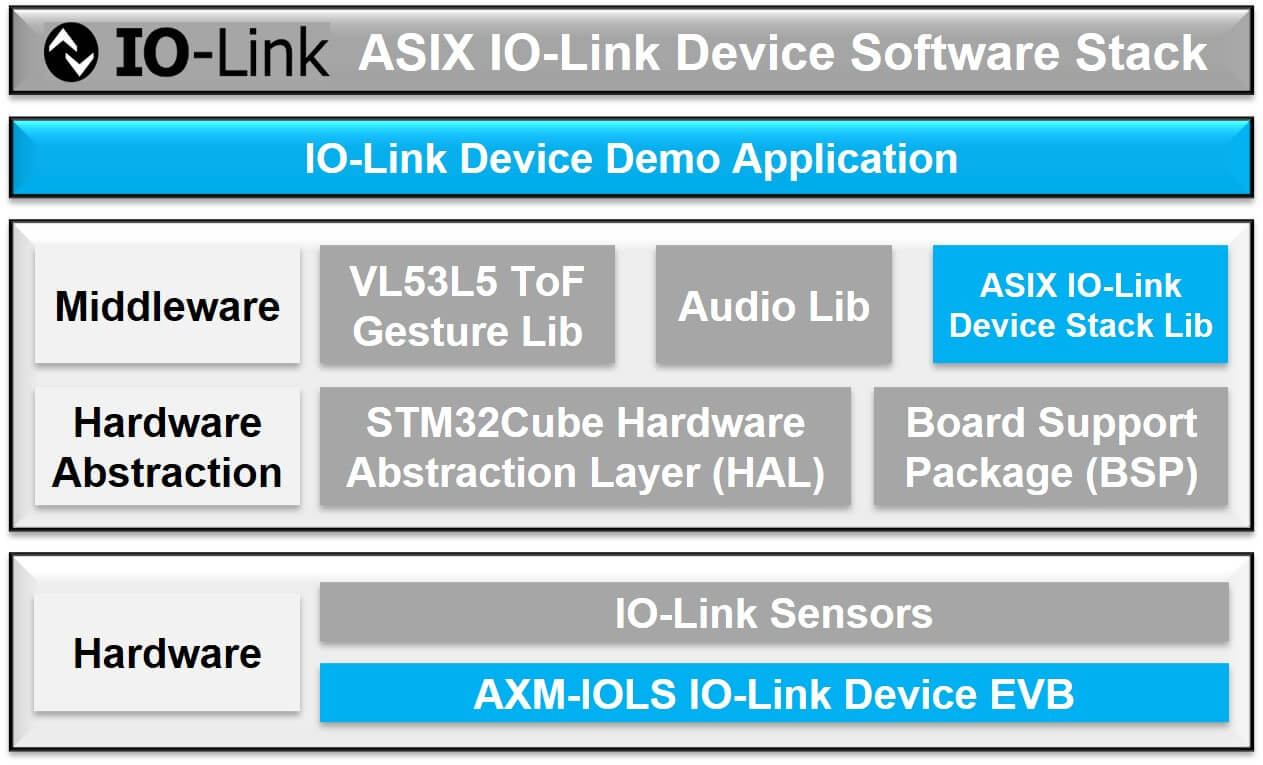

The grey blocks originate from ST STEVAL-BFA001V2 software package.
The grey blocks originate from ST STEVAL-BFA001V2 software package.

Key Features:

-- Compliant with IO-Link Interface and System Specification V1.1.3
-- Support backward compatibility for operation on IO-Link V1.0 masters
-- Written in ANSI-C 99
-- Operating modes: IO-Link and SIO mode
-- Support firmware upgrade via IO-Link
-- Support ISDU communication
-- Support data storage
-- Consistent Process Data Exchange (PDE) through alternating buffers
-- Support all telegram types and transmission rates: 4.8Kbps (COM1), 38.4Kbps (COM2) and 230.4Kbps (COM3)
-- Small footprint: <1KB RAM, <10KB Flash
-- Designed to operate seamlessly with ASIX AXM-IOLS IO-Link device board, equipped with ST L6362A IO-Link device transceiver

Typical Applications

> IO-Link Sensors
-- Temperature/Pressure/Photoelectric/Vision/Time-of-Flight (ToF)/etc.
> IO-Link Actuators
-- Valve Actuators/Motor Controllers/Smart LED Towers/etc.
> IO-Link Hubs
> IO-Link Valve Islands
