Low Power 5V 2.5Mbps 256-Fanout RS485 Transceivers

Add Favorites


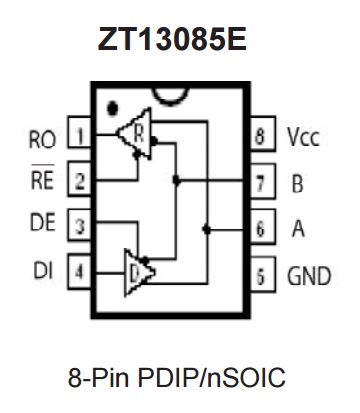

The ZT13085E device is a 5V differential data line transceivers for RS485/RS422 communication that consist of one driver and one receiver with high level of ESD protection. They are designed for balanced transmission lines interface that meet ANSI standard TIA/EIA-485-A and ISO 8482:1987(E) specifications.

The ZT13085E series devices spans out with half duplex, data rate guaranteed at 2.5M bit per second allow one-eighth of an unit load that fan out 256 devices sharing a common bus. The I/Os are enhanced-electrostatic discharge (ESD) protected, exceeding ±15kV Human Body Model (HBM).


● Meets or exceeds the requirements of ANSI Standard TIA/EIA-485-A and ISO 8482:1987(E) specifications for Vcc at +5V ±10%
● Low quiescent current – 0.5mA typ., 1mA max
● Low shutdown current (where applicable) - 1μA typical, 10μA max
● Guaranteed standard data rate 2.5Mbps
● True Fail-Safe (Open, Short, Bus Idle) Receiver
● -7V to +12V common-mode input voltage range
● Half-Duplex mode configuration
● Allows up to 1/8 unit load (256 devices) on the same common bus
● Controlled driver output slew rate and receiver input filtering
● Active-high driver enable and active-low receiver enable
● ESD protection on bus terminals
-- ±15kV Human Body Model (HBM)
● Alternative replacement for MAX3085E, MAX13082E, MAX13085E, SN75HVD3085, SN-65HVD3085
● Standard fanout driving 1 unit load (32 devices) on the ZT485E Series are available options

Target Applications

RS422/RS485 communications
Utility meters
Industrial process control
Building automation
Level translators
Transceivers for EMI-sensitive applications
Routers and HUBs
Industrial-controlled Local Area Networks
Industrial PCs, embedded PCs and peripherals
Industrial, security CATV and camera applications
